File:APC Back UPS ES 600 RJ50 Pinout.png

From RECESSIM, A Reverse Engineering Community
Jump to navigation Jump to search

Original file ‎(434 × 657 pixels, file size: 26 KB, MIME type: image/png)

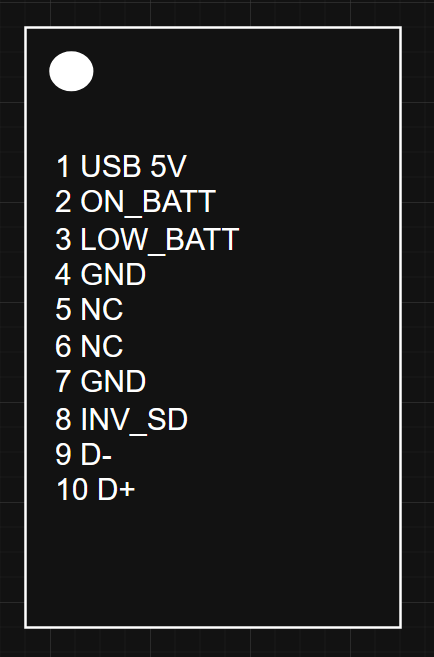

Pinout for the RJ50 connector on the Back UPS ES 600 (and very likely other models on the Back UPS series or whole APC)
