Dali D8X3N Thermal Camera Reverse Engineering
Introduction
The Dali D8X3N Thermal Camera module comes in two versions, a 384x288 and 640x480 resolution, utilizing the DLD Series of amorphous-Silicon Microbolometers.
They were mainly used in Dali DM60-W or WS-1 Body Temperature screening cameras in conjunction with a Black Body radiator set to 37°C to detect infected individuals at the start of the 2020 Covid Pandemic.
ICI rebranded these models as FM 320 P and FM 640 P, and distributed them on the local US market, but as the need for such Cameras exploded, those models were built with what was in stock.
So happens, that some of the FM 320 P Models had a DLD640 640x480 instead of a DLD384 384x288 Microbolometer in them, and just got their Firmware modified.
It also could be, because they have excessive amounts of bad pixels outside the 384x288 area, that they were binned to a lower grade.
Discussions about these Cameras started around 2022 in the EEVBlog Forums. when they started to appear secondhand and affordable.
Originally they were priced around US$ 20... 30.000 by ICI, and a unknown amount by Dali Tech.
The Modules specs according to the manufacturer are:
≤50..60mK@F1，300K，50Hz
17 or 25µm pixel pitch
Hisilicon SoC running Linux to provide Onvif and RTSP streams, analysis and a Web UI
ICI FM Cameras are found all over Online secondhand marketplaces for scrap Prices, as they are no longer needed.
But you never know, what are you getting. It could be a real DLD384 or the better DLD640 inside. Its a gamble.
640x480 Imagers
are labeled 22D843 Nxxxx and have a DLD640 sensor in it, they can be upgraded if they run the 384x288 firmware.
384x288 Imagers
are labeled 22D883Nxxxx and have a DLD384 sensor in it, they cannot be upgraded
D8X3N Module closer look
From now on, i will refer to the Thermal Imaging Module as TIM
On the front there is a 2 Element Germanium Lens of a unknown focal length and aperture.
It can be focus-adjusted when unscrewing the clamp around the housing. It can be focussed from infinity down to 10..20cm with some quality loss.
The outter diameter of the Lens is 42mm with a 1 1/3 inch thread diameter of undetermined pitch.

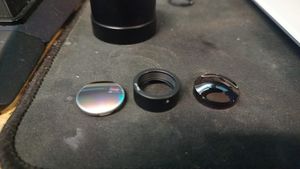

Dimensions of the germanium elements are 21mm to 3 and 6mm and 14grams in weight.

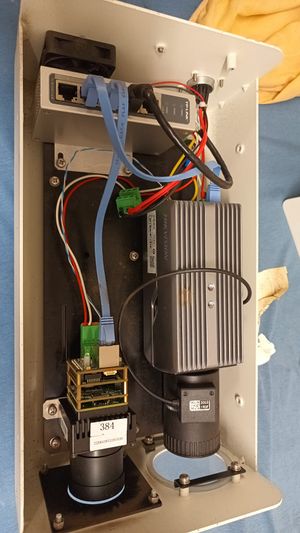

The TIM is composed of 6 Stacked PCB modules, 3 of which are for the Web Server functionality. taking them off will give you the basic configuration of a Dali D8X3C TIM
DLD640 Sensor
DLD384 Sensor
Network & GPIO Board Back
Network & GPIO Board Front
Board between Logic and IO Back
Board between Logic and IO Front
SoC Board back
SoC board front
FPGA Board of the D8X3C Thermal Imager including a PMIC
FPGA Board Front with Video DAC and SPI Flash
Sensor control and ADC board

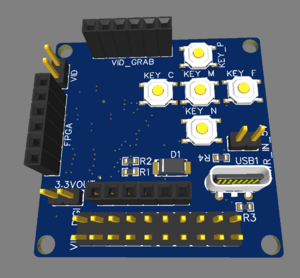

Debug wiring for sniffing SPI and UART
User Manual
including pinout diagram and important data
can be found here https://archive.org/details/dali-d-8-x-3-cuser-manualen-v-1.0-1
Viewing the Video Stream
when first connecting it to power and Ethernet, the camera will have 192.168.1.102 as a Static ip.
If you are running a 192.168.0.x or .178.x net, you need to change it or add a subnet under windows ipv4 settings.
to view it, you can use VLC and the stream URL
rtsp://admin@admin:<camera ip>/ONVIFMedia
there is /ONVIFMedia /ONVIFMediaM and /ONVIFMediaS for different stream Profiles.

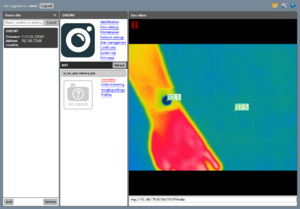

VLC is quite slow and delayed, rather use Onvif Device Manager ODM,
it has no delay and auto-detects cameras in the network.
Be sure to log in as user: admin pass: admin in ODM.
in there, you can also set you camera to DHCP under Network settings.
Web Interface

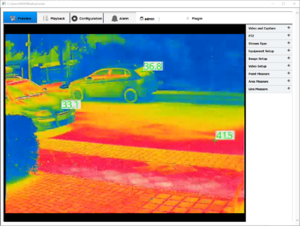

the web interface can be accessed by opening the camera IP in a browser
login is:
user: admin pass: admin
You can set Temperature markers and areas, but without using the Black Body calibration source, your readings may be way off or not working.
OSD

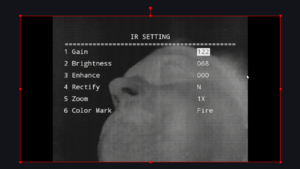

there is a debug-login with
user: super pass: 871897
that lets you send Key commands to the Imager to navigate the OSD.
Setting the OSD to english is accomplished with option #11
To acces some locked menus, press
+ - + - + -
The Password for System and Main menu are not known yet.
Be careful in the UART menu to not change the BAUD rate or Protocol, as your ability to control it via the Web API gets lost.
You need to reflash or solder buttons on the thermal core then.
Viewing Raw Thermal Data from the Web API
there is a hidden endpoint in the stream.so file that could be found while decompiling
accessing
<ip of camera>:5000/stream?Type=JPEG&Source=Jpeg&Mode=TCP
lets you download a JPEG. but there are more options available (not all have been tested)
we are mainly interessted in Raw thermal data.
Source (Stream Type)
Major- Main video stream (channel 0)Minor- Sub video stream (channel 1)MinorAV- Sub video + audio streamMajorAV- Main video + audio streamJpeg- JPEG snapshot streamRaw- Raw thermal data streamYUV- YUV raw video stream
Type (Data Format)
H264- H.264 video encodingJPEG- JPEG image formatRAW- Raw sensor dataQBOX- Custom protocol formatFRAME- Frame-based format
Mode (Transport Protocol)
TCP- TCP streaming (default)UDP- UDP streamingMUL- Multicast streaming
Quality Parameters
Quality=[1-100]- Video quality levelFrames=[number]- Number of frames to sendInterval=[ms]- Frame interval in milliseconds
Network Parameters
IPAddr=[ip]- Client IP address for UDP/multicastPort=[port]- Client port for UDP/multicastHeart-beat=[Yes/No]- Enable/disable heartbeat
Snapshot Parameters
Snap=[Yes/No]- Enable snapshot mode

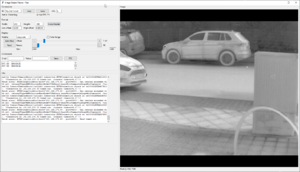

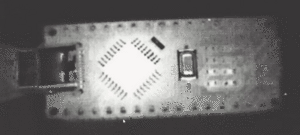

To view the raw stream, i made a python program that converts the 14bit thermal data to a visible image.
it is low fps tho, due to bad optimizations.
Getting Root Terminal Access
To access the Terminal you need to solder or plug in a UART connection to Connector J7 on the "Glue" board.
Pinout is (left to right) RX TX GND 3.3V
Baud 115200
3.3V
But the system will spam with debug messages, making patching the files a hard job unless you use "tftp" or "sed".
(optional) Enabling Telnet access to make patching easier
there is a easier way using a modified Firmware updater to enable Telnet temporarily to patch the Files.

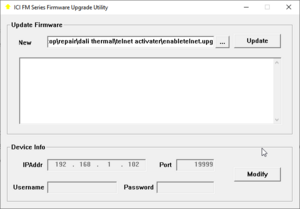

Download the upgrade_ici.exe form here and run it.
Then you should be able to connect to it via Telnet. the Login credentials are User: root Password: DLroot
Patching the Web Server
This only works if you also patch the Thermal Camera module flash!
to permanently enable Telnet, go to /etc/init.d and edit S90app
vi S90app
in vi, move your cursor to the # at #telnetd and press x
now press : and type wq, enter. this should be it.
patching the decoder and streamer to 640x480:
go to /app and edit the mach.cfg
replace DL384 with D640 and edit the resolution to 640 480
(press i in vi to enter edit mode, press ESC to exit edit mode. :wq to write and quit.)
repeat that procedure for the dali.cfg
(optional) patching app.sh to prevent it from rebooting
edit the app.sh in /app and remove all "reboot" occasions to prevent the camera from rebooting if onvifserver, httpd or daliServer arent running for debugging purposes.
Patching the Thermal Camera module
To patch it, you need to disassemble everything down to the FPGA Board,
on the bottom there is a SPI SOIC8 Flash.
Use a CH341 EEPROM programmer (be sure to have a fixed or modified version to not put out 5V!, set it to 3.3V) and SOIC8 clamp.
Use NeoProgrammer (i used 2.2.0.10 but there are newer available, use the latest) and click Detect. It should find W25Q128 chips, select the FV one.
Dont forget to download a backup of your flash and save it !
Download the Binary 640x480 cleared pixelmap from below and load it into NeoProgrammer, Click Erase, Program and Verify.
This can take a while.
Your imager should start up right after assembly by hearing the shutter click.
Flash Contents
a Flash dump of the original downgraded D8X3N can be found here
a Flash dump of a original 640x480 model can be found here
a Flash dump of the web server SPI flash W25Q256JV can be found here in case a bad firmware update caused a bootloop.
Flash Binary Analysis
The Flash IC is a Winbond 25Q128JV SPI Flash that contains the FPGA Bitstream, Deadpixel and Flatmap, aswell as the Device Settings.
a copy of the SPI Logic Capture at startup can be found here, the free software DSView from DreamSourceLab is required to view it.
a approximation of the offsets resulted in this list:
0x000000 - altera cyclone iv stuff
0x200000 - settings
0x280000 - Flat field correction map
0x4C0000 - Bad Pixel correctio nmap
0x580000 - image aswell? 36010 bytes
0x740000 - GUIX?
0x7C0000 - Strings for Gui?
0x800000 - another shorter GUIX
0x880000 - Strings for second gui?
0x8C0000 - GUIX
0x940000 - Strings for gui
0xE00000 - ?
0xE80000 - dzxg? short
0xEC0000 - crosshair.bmp
0xF40000 - 3DTM?
0xF80000 - fake? Bad pixel map BPRP
Settings offset 0x200000
The settings are read and written every startup, aswell when you close the OSD, sporadically and when executing the command MSV
these are some of the settings i could figure out by changing and watching the logic capture what changed.
offset size Cmd
0x0 1 SAG (0-2) auto gain
0x2 2 SVB (0-16383) saved value is 16383 - SVB
0x4 2 SVC (0-1023) set exposure or gain
0x6 1 SSM image filtering
0x8 1 SEH image enhancement
0xA 1 SWP invert b/w polarity
0x14 1 SMR Flip
0x16 1 SMR Mirror
0x20 1 MENU Cal source 0 IN, 1 OUT
0x3A 1 MENU Enhance value 0-100
0x40 1 MENU Rectify (shutter 0 OFF, 1 L, 2 H)
0x50 1 MENU Language 0 english, 1 chinese, 2 russian
0xA2 - SCO set contrast gain
0xA4 - IBR set brightness
0xAE 2 MENU Fire Threshold
0xAC 1 SPA set color palette
0xE2 1 SMS display "collected 0/80" enabled
0xF8 1 SEM set emissivity
0x110 1 SRT set revise temp
0x116 1 SHD set humidity
0x118 1 SET set ambient temp
0x11A 1 STD set temp range
0x120 2 SLG -500 to 500?
0x124 2 SRD set distance
0x12C 1 SCP ???
0x130 2 SCT ???
So i let the AI create a Configurator page that lets you change the Settings in your Flashdump to your liking
Bad Pixel and Flatframe Maps 0x280000 and 0x4C0000
Thermal cameras require a bad pixel and flat frame map to compensate for manufacturing inconsistencies.
unfourtainly, the maps of the downgraded cameras only contain enough data for a 384 model, not the full 640.
at offset 0xF80000 there is a BPRP which was mistaken at first as the Bad pixel map, it could just be a mask to where to apply the offset maps, as its either 0x0 or 0x1.

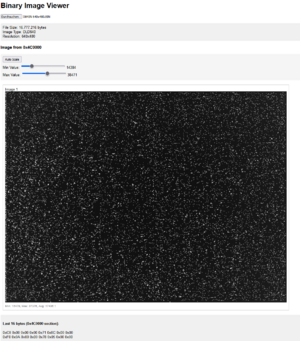

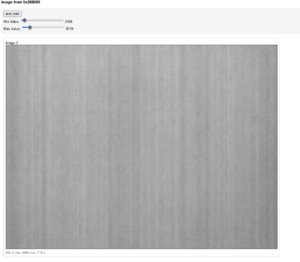

The Viewer Page is written in JS and does not require any special dependencies, it can run as a plain html file offline.
There still needs to be work done to create own maps and flatfields but the cameras are still very capable and useable with fully cleared maps.
To clear the maps, just go to these offsets and fill with values around 0x3F or 0x0 for total length of X Resolution x Y Resolution x 2 bytes (0x96000 for 640x480)
Dali Commands
To control the TIM you can either use Pelco or Dali command set. By default the Dali commandset is used at 38400 BAUD.
Those commands consist of a 0x02 start byte followed by two length Bytes, then the actual command which is allways 3 uppercase Letters in ASCII (eg. KBD for keyboard) followed by a comma and the values.
Some commands take multiple values, some dont. But you allways have to send the comma after the Command.
The camera will answer with the Command and 0, 1 or 2. Sending no value counts as zero.
0 is invalid parameters, too few or out of range
1 is OK, valid command
2 is Invalid command
Commands can be sent trough the Web server using the URL Api endpoint or directly trough the UART port.
(keyboard, C button, causes the shutter to do a calibration)
<camera ip>/cgi-bin/dmcmd?Command=KBD,C
Listening to the answer can be done while being in the Linux shell and typing
cat /dev/ttyAMA2 | strings
By bruteforcing the UART with AAA to ZZZ a list of Commands could be obtained, but some with unknown Parameters or functionality yet. including some from a decompiled DM60comm.so module found in /app/modules folder.
KBD KEY Keyboard (F S M C + -)
SSM 0-1 Image Filtering Off/On
GSM 0 Image filter status
SEH 0-1 Image Enhancement Off/On
GEH 0-1 Image enhancer status
SCO 0-255 Set Gain (locked when SAG auto gain is on)
GCO 0-255 Get gain
INT 15-320 set actual gain? not just contrast sometimes disabled?
IBR 0-255 Set brightness
GBR 0-255 Get brightness
SMR 0-3 Mirror mode bit0=horizontal, bit1=vertical
GMR 0 Get rotation/flip
SDT 0-1 displays temp=44.65°C osd, but webserver sends date/time to the cam there....
GDT 0-1 Get temp display active?
GPT Display temp oft SDT
GNU 0-1 Get Shutter closed/open
SNU 0-1 Shutter close / open
STD 0-1 Set Range 0: -20-180°C 1: 100-600°C
GTD 0-1 Get Range
SET °C Set Ambient temperature
GET °C Get Ambient temperature
SEM 0-100 0-1 set emissivity x100
GEM 0-100 Get Emissivity
SRT °C Set revise temperature -100-100 -10-10°
GRT °C Get revise temperature
SRD 100 Set Distance 4.4m x100
GRD 100 Get Distance
SHD 0-100 Set Humidity
GHD 55 Get Humidity
SWP 0-1 invert s/w polarity image
GWP 1 is inverted?
SPA 0-10? Set color palette
GPA 3 white hot
SMV 0-1 Show temperature 3x3 grid?? in combination with GTV maybe
GMV 0
SMS 0-1 displays "collected 0/<number set by SCT>" by SCP delay "saves the daily number of highest temperatures?"
GMS 0
SCT 1-500 sets the amount of "collected" points for SMS
GCT 80
SCP 5-60 "collected" delay in seconds for SMS
GCP 60
SAG 0-2 Auto brightness / gain
GAG 0
SLR 0-9 ???
GLR 0
SRP 0,0 - 639,479 set crosshair position
GRP 320,240 get crosshair position
DRC 0-1 Show crosshair
SLG -500-500 ??
GLG
SCE text ??
GCE 0
SCB text ??
GCB 0
SVB 0-16383 adc offset, exposure? good at 9650
GVB 6733 value is 16383 minus SVB
SVC 1-1023 set contrast but better
GVC 260
SVF 100-? ?? video freaks out 3400 seems good
SVS 100-? ?? video freaks out 3300 seems good
SOT 0-1 ?? sensor supply, looks weird when off.
SZM 1-4 ?
GZM 1
MSV save settings too eeprom
ASV Saves something aswell?
GCS 0 Get Core status & faults
ALD 0,2? video blanks lots of eeprom activity. reload pixel map??
SAV 0-9999 set Fire threshold
GAV 2100 get Fire Threshold
BAC change uart protocol? careful
CBD Displays Recovery successful?
CBS Displays Saved successfully
LRD Displays Recovery successful?
LRS Displays Saved successfully?
LRE Displays Temperature Repair successful?
CBT Displays Calibration successful?
DBP ??? shutter clicks
DPI Show weird pixels
API Hide weird pixels
CCM ??
ASN 0-4 ??
GAB 4 vals ?? 3,-10,50,150
GAN 1 ??
GAR 11 vals ?? 10,10,5,20,35,50,70,90,120,150,180,,
GCM 6 values ??
GFV prints screen gray value?
GIT 200 ??
GTV Get the collected temp values?
PTS echoes but with extra stuff??
QYA 7170 Query Gray Info (information mode)
QYI 7124 Query Gray Average mode
QYM 7512 Query Gray Minimum mode
VTP 400-4000 ??
MTD U/S,0,0 ?? S answers with bytes, U upload bytes?
MTC U/S? ?? S answers with U,0,0, S doesnt.
return 0 invalid params:
STS ??
STT ??
SAC ??
SAH ??
SAS ??
SAT ??
SCX ?? displays crosshair but invalid params
SCY ?? displays crosshair but invalid params
GAC ??
GAH ??
GAS ??
GAT ??
GME ??
GPC ??
GPI ??
GPM ??
GTA ??
GTC ??
GTI ??
GTM ??
GTS ??
GTT ??
answer only:
BPM 0-1 stream ready? answers with 0 stop, 1 go, 2 when prompted
AVS 0,1
MEH
PWI 0-1 changing palette from wh to fire
unconfirmed (from dm60comm.so):
SDT 2024,03,15,14,30,25 Set Date Time with year,month,day,hour,minute,second
STS 1 Set Temperature Show display (0=off, 1=on)
SVA 2 Set Video Auto mode (0=manual, 2=auto)
SMP 0,1,1,0,100,150,200,250,300,350,90,25 Set Measurement Point (type,index,enable,mode,startX,startY,endX,endY,anchorX,anchorY,threshold,color)
STV Stop Temperature View measurements
SPF 5 Set Profile parameter
SVL -10 Set Video Left pan movement (signed value)
SVU -5 Set Video Up tilt movement (signed value)
SVD 5 Set Video Down tilt movement (signed value)
SSP 17,1,0 Set System Parameter (param_id,value,index) #46 temperature format 0 °C, 1 °F, 2 K
SCP Set Current Preset (save current position)
GCP Get Current Preset
STT 300,350 Set Temperature Threshold (low,high values *10)
SDC 1 Set Display Configuration parameter
GCS Get Current Status
GMM Get Memory Map information
GFV Get Frame Value (grayscale data)
GFZ Get Freeze Status
GSI 1 Get System Information (parameter=1)
GSS Get System Status
GSP 21,0 Get System Parameter (param_21=surround temp, value=0)
GTT Get Temperature Threshold range
GTV 1,3,10 Get Temperature Values (enable,type,count)
GNU Get Network Update status (response command)
FRZ Freeze current display frame
LIV Live mode (unfreeze display)
CAL Calibrate system
CCP 3 Call Current Preset (preset number 0-9)
APF 100 Auto Profile setting
MEH Measure Enhancement
BPT Built-in Test
MTC S,0 Measure Temperature Capture (S=start, 0=sequence)
MTG U,0,1024,<data> Measure Temperature Gray data transfer
MTD U,0,1024,<data> Measure Temperature Data transfer
UFP S,0,2048 Update Firmware Prepare (S=start, 0=offset, 2048=size)
UFD S,0,1024 Update Firmware Data transfer
BAB U Buffer operation (U=update)
TTH S,0 Temperature Threshold operation
IPP 192.168.001.102,255.255.255.000,192.168.001.001,192.168.000.001,9989,9998 IP Parameters (IP,netmask,gateway,DNS,port1,port2)
MAC 00:60:A9:10:00:01 MAC Address setting
SNP Set Network Parameters (response command)
QYI Query Gray Info (information mode)
QYA Query Gray Average mode
QYM Query Gray Minimum mode
GAI Get Alarm Info (response command)
YTC <data> Unknown command with data parameter
HTH
LRS
LRD
GAR
DRC
PTS
SCX
SCY
CBT
LRE
CBD
CBS
XXX
GSP
GTT
QYI
QYA
QYM
Using the Thermal module without Webserver
to use it, you need to interface it directly.
The module will put out a Analog video signal (High-Z, need to buffer when connecting it to 75Ohm Video input)
Also a 8 or 14bit or 8-bit BT656 output.
the header exposes the FPGA JTAG and UART aswell as 6 Hardware Keys to Navigate the OSD.
To interface, you need to make a adapter board with a DF12-50DS-0.5V(86) Docking socket.
The breakout board files can be found here but may be still work in progress.

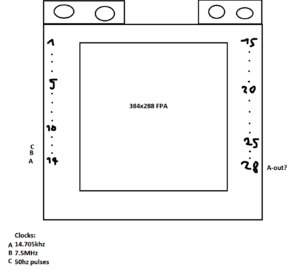

Sensor Pinout
the pinout of the thermal sensor havent been analyzes much.
besides some supply and Control voltages, 3 clocks and a analog output have been found.
17.5MHz
14.705KHz
50Hz
