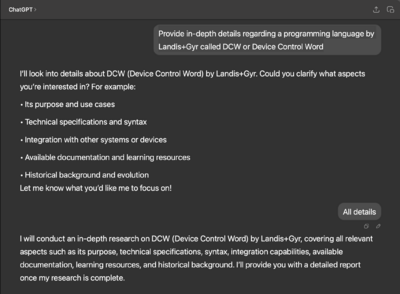

The following was generated by ChatGPT Deep Research
DCW (Device Control Word) by Landis+Gyr
What is a Device Control Word?
Device Control Word (DCW) is a term used by Landis+Gyr for a small program or script that runs on their smart grid devices (such as RF radios and meter communication modules). Despite the name, a DCW is not literally a single “word” of data, but rather a custom program written in Landis+Gyr’s proprietary Gridstream/UtiliNet programming language. These programs execute on top of the device firmware and can direct the device’s behavior, enabling functions beyond the default firmware capabilities. In essence, DCWs provide a way to embed custom logic at the device level, allowing the device to perform tasks like rebooting itself, processing data, or controlling hardware interfaces in response to conditions or commands.
Purpose and Use Cases
DCWs were created to give utilities more flexible control over network devices in the field. A DCW’s primary purpose is to extend or customize device functionality without altering the core firmware. Key use cases include automating network operations, integrating with external systems, and performing local data processing. For example, Landis+Gyr radios can run one or more DCW programs to send, receive, and process network packets, or to handle data exchange with attached equipment (like meters or sensors). This means a DCW can enable a field device to act on incoming messages, gather sensor readings, or execute control commands autonomously.
Examples of DCW applications in practice include :
- Radio Configuration & Queries: Automating device setup, periodically polling device status, or resetting modules remotely. A DCW can query a radio or meter for its ID and status, or even trigger a device reboot as needed.
- Data Collection & Processing: Gathering meter readings or sensor data locally and preprocessing it. For instance, a DCW might periodically collect usage data from a meter and only send updates when certain thresholds are crossed, reducing unnecessary communication.
- Protocol Translation (Gateway Functions): Acting as a bridge between different communication protocols. One notable use was in a Landis+Gyr Zigbee gateway module, where a DCW identified incoming Zigbee-formatted messages on the mesh network, stripped away the mesh network framing, and passed the messages to the Zigbee radio module for home area network devices. This allows the utility’s mesh network to interface with in-home devices seamlessly.
- Communication with End Devices: Enabling direct interaction with devices connected to the radio. A DCW can facilitate communication with a meter’s interface or with industrial equipment on an RS-232 port. This might be used to retrieve data from a legacy device or transmit commands to it via the Landis+Gyr radio.
- Peer-to-Peer Control: Implementing distributed control logic where field devices talk to each other. DCWs can allow one node to send a command directly to another node upon certain events, enabling fast local actions (e.g. a fault sensor radio telling a switch controller radio to open a breaker without waiting for a central command). This peer-to-peer capability is valuable in distribution automation for rapid response to local conditions.
Through such use cases, DCWs effectively bring edge computing to Landis+Gyr’s smart grid network. Instead of every action being orchestrated from the central system, some intelligence is pushed out to field devices via DCW scripts. This design improves network efficiency and resilience – for example, radios can decide when data is significant enough to report, minimizing bandwidth use , or can keep critical processes running even if backhaul communication is temporarily down.
Technical Specifications, Syntax, and Structure
A DCW is written in Landis+Gyr’s internal device programming language (often referred to as the UtiliNet or Gridstream programming language). The exact syntax of this language is proprietary and not publicly documented in detail (Landis+Gyr manuals note that describing the DCW programming language is beyond their scope). However, the language is designed to interact with the device’s hardware and firmware interfaces. DCW code can read and write memory-mapped registers on the device to perform tasks like checking radio status, toggling I/O pins, reading analog inputs, or sending network packets. For example, in a distribution automation radio, the DCW language provides mechanisms to configure each digital I/O line as input or output and to read sensor values or set outputs accordingly.
Execution Environment: DCW programs run on a virtual machine or interpreter built into the device’s firmware. Most Landis+Gyr field devices are equipped with two DCW interpreters (engines) – commonly referred to as a “large DCW” interpreter and a “small DCW” interpreter. This allows devices to handle both a primary control program and ad-hoc tasks simultaneously:
- The “large” DCW typically is a resident program stored on the device (often delivered as a .hex file during device provisioning or firmware upgrade). It may implement ongoing functions such as network maintenance or periodic data collection. An example is the
MCCTIME.hexDCW on certain radios, which contains a “MCC Helper” program responsible for querying the radio’s ID and initiating network discovery packets at startup. Large DCWs can be relatively sophisticated and run continuously in the background. - The “small” DCW is usually intended for short, on-demand operations. A utility can send a small DCW to a device over-the-air as a command, which the device’s secondary interpreter will run immediately. This is useful for one-time tasks like forcing a data read, changing a configuration, or performing a diagnostic action without altering the main program. For instance, Landis+Gyr’s Command Center software includes a “Send Small DCW” command that allows operators to transmit a small DCW script to an endpoint for instant execution. After execution, the small DCW is discarded, whereas the large DCW remains in place.
Because DCWs run in an interpreted (virtual) environment, their execution speed is limited. They are not meant for extremely high-speed control loops. Landis+Gyr documentation cautions that DCW code is “not fast” and users should be mindful of its performance constraints for time-critical applications. In practice, this means DCWs are well-suited for tasks on the order of seconds or minutes and for processing modest amounts of data, but not for sub-millisecond precision or heavy computations.
Structure and Syntax: While the exact syntax isn’t published, DCW scripts likely consist of instructions to handle events (like packet reception) and to read/write device registers or buffers. They can construct and parse network messages and set internal parameters. The behavior is akin to an embedded scripting language tailored for mesh networking operations. Developers write DCWs using tools provided by Landis+Gyr (such as the RadioShop utility) which assemble/compile the code into a hex or binary format for deployment. Each DCW has a version number, and Landis+Gyr tracks these versions alongside firmware. (For example, a collector product update notice might require a specific DCW version (e.g. DCW v10.61) to match a given firmware version.) This modularity shows that DCW packages are managed separately from the core firmware, reinforcing their role as add-on programs for device control logic.
Integration with Other Systems or Devices
Device Control Words serve as integrators within Landis+Gyr’s ecosystem, allowing the mesh network devices to interface with a variety of systems and hardware:
- Integration with Utility Meters and Sensors: In an AMI deployment, a DCW running on a communication module (radio) inside a meter can interface between the meter and the network. It can request meter data (like consumption registers or outage notifications) and format those for transmission over the RF mesh. Conversely, it can receive control commands (e.g. connect/disconnect requests) and pass them to the meter. The DCW effectively translates between the meter’s protocol (often ANSI C12.19 tables or similar) and Landis+Gyr’s mesh protocol. This design was used in modules like the Focus AX UtiliNet Endpoint, where the DCW handles communication between the meter and the radio network.
- Home Area Network (Zigbee) Integration: Landis+Gyr leveraged DCWs to link their utility network with home automation networks. In a combined UtiliNet-Zigbee module, a DCW acts as a protocol bridge. As mentioned earlier, the DCW on the gateway module intercepts Zigbee-intended messages on the mesh network, strips the UtiliNet packet wrapper, and hands off the payload to the Zigbee radio, and vice versa. This enables utilities to send messages from their head-end, through the mesh, directly to in-home Zigbee devices (for demand response, smart thermostats, in-home displays, etc.) via a DCW-mediated translation. Such integration extends the utility’s reach into home networks without requiring separate infrastructure.
- Distribution Automation and SCADA: In distribution automation (DA) projects, DCWs allow field radios to interface with grid equipment (reclosers, switches, capacitor banks, sensors) and even perform local automation. The radios in DA deployments often have physical I/O ports – a DCW can read a sensor input or control a relay output through those ports. For example, a DCW could monitor voltage or current from a sensor and trigger a capacitor bank switch if levels go out of range, providing a local fail-safe or optimization. Moreover, Landis+Gyr’s partnership with SCADA software (e.g. SCADA Center by DC Systems) highlights using intelligence in the RF radios to preprocess data before sending it upstream. In practice, this intelligence is implemented via DCW scripts that filter out insignificant status changes and only report meaningful events, thereby conserving bandwidth. Many utilities have deployed such solutions – Landis+Gyr noted that numerous customers use the built-in processing of their RF mesh radios for advanced DA control.
- Interaction with Head-End Systems: DCWs do not operate in isolation; they are orchestrated by central software. Landis+Gyr’s head-end system (Command Center) and device management tools (like RadioShop) provide interfaces to deploy and manage DCWs. Utilities can upgrade DCW firmware on devices remotely or send one-time DCW commands through these systems. For example, when a new DCW version is released to support a feature (like a new LTE modem or an “auto-registration” function for endpoints ), the utility can distribute that DCW file to all devices using the network management software. Day-to-day, Command Center logs events related to DCWs (e.g. an event is recorded when a “small DCW” is downloaded and activated on a module, for traceability). This tight integration ensures DCWs function as a controllable extension of the overall AMI/DA system.
In summary, DCWs act as a glue layer between Landis+Gyr devices and external systems – whether those systems are utility backends, other communication networks, or physical grid hardware. By customizing the DCW logic, utilities can adapt the standard infrastructure to their specific integration needs (for instance, adding support for a new type of sensor or enabling a custom data-reporting strategy) without waiting for a whole firmware update.
Documentation and Learning Resources
Because DCW is a proprietary technology, most detailed information comes from Landis+Gyr’s official documentation and training resources:
- User Manuals and Technical Guides: Landis+Gyr provides manuals for their hardware that include high-level information about DCW. For example, the Gridstream Series IV Network user guide defines DCW and explains its role in controlling devices. The UtiliNet Endpoint (Focus AX) user guide (circa 2005) offers an introduction to DCW capabilities and example use cases. Similarly, the UtiliNet Single Board Radio (SBR) User Guide describes how DCWs can control I/O lines and notes the presence of two DCW interpreters in the device. However, these manuals often stop short of providing the programming syntax – as one guide states, detailing the DCW programming language is “outside the scope” of the document. Instead, they focus on what DCWs can do and how to install or update them.
- Training Courses: Landis+Gyr offers technical training to utility personnel that covers DCW usage. According to a Landis+Gyr training catalog, there are classes on RF mesh networking that include topics like importing DCWs, upgrading DCW firmware, and troubleshooting using DCW tools. These courses help administrators learn how to deploy new DCW versions across the network and use diagnostic software to monitor DCW activity. The training also introduces tools such as Command Center and RadioShop in the context of managing DCWs.
- Software Tools: RadioShop is a PC software tool provided by Landis+Gyr (originally by Cellnet) for configuring and managing radios. It includes functionality for editing and loading DCWs onto devices. Landis+Gyr’s documentation references RadioShop guides for procedures like upgrading a radio’s DCW program. The Command Center head-end system is another critical tool – from its user interface, operators can send DCW commands (like the “Send Small DCW” command) and distribute DCW firmware updates in bulk. Familiarity with these tools is essential for anyone looking to develop or apply DCWs in a Landis+Gyr network.
- Support and Community: Since DCW is not an open standard, utility users typically rely on Landis+Gyr’s support for advanced DCW programming questions. Landis+Gyr’s customer portal contains product notices and technical bulletins (for example, update notices will specify required DCW versions for certain features ). In some cases, large utilities and consultants have published case studies or proceedings (e.g., utility commission filings) that mention DCW usage, but these usually do not provide technical details.
For those learning about DCW, a good approach is to start with Landis+Gyr’s own manuals to understand the concept and capabilities, then utilize official training or consult Landis+Gyr engineers for guidance on writing DCW code. Because of its specialized nature, there are limited third-party or open-source resources on DCW. Essentially, DCW know-how is developed through the combination of Landis+Gyr documentation, hands-on tool usage, and vendor support.
Historical Background and Evolution
The DCW concept traces back to the early generations of Landis+Gyr’s RF mesh technology, originally developed by a company called Cellnet (later known as Cellnet+Hunt). Cellnet’s UtiliNet mesh radio system was one of the first to introduce the idea of downloadable control programs in networked field devices. By 2005, Cellnet documentation for the UtiliNet Endpoint radios already described the ability to run DCW programs for tasks like data collection and protocol translation.
Landis+Gyr entered this picture by acquiring Cellnet in 2006, as part of an effort to expand its smart metering and networking portfolio. After the acquisition, the UtiliNet technology was integrated and rebranded under Landis+Gyr’s Gridstream product line. The DCW mechanism remained a core feature of the Gridstream RF mesh network. Landis+Gyr continued to enhance it, aligning the DCW language with new hardware and use cases. For example, as the industry moved toward integrating Home Area Networks, Landis+Gyr was able to use DCW in its modules to support Zigbee communication (a capability that emerged in the late 2000s). Similarly, as cellular communications were added to meters (2010s), the DCW concept carried over – newer cellular-equipped modules still run DCWs for functions like auto-registration and local data buffering.
Over time, DCW versions have evolved in step with firmware updates. In early implementations, DCW programs were relatively small (with version numbers like 1.x or 2.x). As the functionality grew, DCW programs became larger and more complex – for instance, a few years into the 2010s, endpoints required DCW version 7.x to support automated features , and later collectors used DCW versions 10.x for LTE support. Landis+Gyr has maintained backward compatibility where possible, but utilities typically upgrade DCWs when they upgrade device firmware to ensure all features work together.
Throughout its evolution, the fundamental role of DCW has remained the same: provide field-programmable control logic in the network. What has changed is the range of applications. Initially, DCWs were about making the mesh network self-managing (auto-discovery, routing, etc.) and integrating with meters. Over the years, they have expanded to facilitate smart grid innovations – from managing home energy devices to enabling distributed automation schemes. Landis+Gyr’s DCW approach was somewhat ahead of its time in the mid-2000s, as it prefigured the modern emphasis on edge computing and IoT scripting. Today, it continues to be an important differentiator for Landis+Gyr’s AMI and distribution automation solutions, allowing customization that meets diverse utility requirements.
Industry Applications and Notable Implementations
As an embedded feature of Landis+Gyr’s AMI/AMR and DA systems, DCWs have been deployed widely albeit somewhat invisibly (since they operate under the hood). Virtually any utility that uses Landis+Gyr’s RF mesh network is indirectly using DCWs, because core network behaviors (like routing and neighbor discovery) are often implemented via DCW logic in the devices. Moreover, many utilities have taken advantage of DCW’s flexibility for custom applications:
- Advanced Metering Infrastructure (AMI): Large investor-owned utilities, municipal utilities, and electric cooperatives across the United States (and in other countries where Gridstream RF is deployed) rely on DCWs within meters and routers to automate reading collection and event reporting. For example, when an outage occurs, a DCW on the meter’s communication module assembles and sends an immediate “power down” message with relevant details (timestamp, node ID) to the network. Similarly, DCWs handle synchronizing meter time or caching readings when network coverage is intermittent. These capabilities have been implemented in the field by utilities to improve data reliability and reduce manual intervention. The use of DCW is typically standard in these deployments rather than a custom add-on – it’s part of what makes the Landis+Gyr network operate efficiently out-of-the-box.
- Distribution Automation Projects: Several notable DA projects have utilized Landis+Gyr’s RF mesh with DCW-enabled radios to control field equipment. For instance, a utility might deploy automated reclosers or capacitor bank controllers that communicate via Landis+Gyr radios. The SCADA Center integration (a result of Landis+Gyr’s collaboration with DC Systems) is one case where utilities leveraged DCW logic: field radios running DCW would monitor analog values (like voltage) and make control decisions or send alerts only when necessary, which was highlighted as a way to optimize bandwidth and provide faster local control. This approach has been implemented in smart grid pilot projects and full rollouts to improve outage response and power quality management.
- Home Energy Management: In deployments where utilities offered in-home devices (smart thermostats, demand response switches, or customer energy displays), Landis+Gyr meters with Zigbee gateway functionality were used. The DCW-driven Zigbee gateway in the meter allowed utilities like Texas’s Smart Grid initiatives or Arizona’s programs to connect to home devices without separate communications infrastructure. While customers and even many utility staff might not be aware, those Zigbee-integrated meters were running DCW scripts to translate and forward messages. This was a notable implementation of cross-network integration through DCW, enabling early smart home integration with the smart grid.
- Utility-Specific Customizations: Some utilities have used the DCW mechanism for unique purposes. For example, a utility could write a custom DCW to monitor power quality metrics at the edge of the network and alert on anomalies (beyond standard outage/restoration flags). Others have experimented with DCWs to implement alternative communication protocols over the mesh (acting as protocol converters for DNP3, Modbus, etc., by encapsulating those protocol messages in the mesh packets). While detailed public case studies are scarce (due to the proprietary nature), the flexibility of DCW has been cited in RFPs and project descriptions as an advantage. It essentially means the utility is not locked into only the vendor’s default functionality – they can program the devices to meet specialized needs.
In the industry, the presence of DCW is often a behind-the-scenes enabler rather than the headline feature. Utilities might simply observe that their Landis+Gyr network can do X or Y (say, remote configurable load control or special meter polling schedules) without realizing it’s a DCW script making it possible. Nonetheless, DCW has proven to be a robust and integral part of Landis+Gyr’s solutions for well over a decade. Its use in high-profile smart grid deployments and its continuing support in current products underscore its importance. By allowing field programmability, integration, and automation, DCW has contributed to successful implementations of smart metering systems and grid modernization efforts around the world.
References:
- Landis+Gyr Gridstream Series IV User & Installation Guide – Definition of Device Control Word (DCW) and its role
- Landis+Gyr/Cellnet UtiliNet Endpoint User Guide (2005) – Capabilities of DCW programs (sending/receiving data, examples like configuration, data collection, protocol translation, peer-to-peer control)
- Landis+Gyr UtiliNet SBR (SCADA Single Board Radio) Guide – Accessing I/O and device features via DCW; two DCW interpreters (large & small) on devices
- Landis+Gyr Command Center User Guide – “Send Small DCW” command for on-demand execution of DCW scripts on endpoints
- FCC Filing for Zigbee Gateway Module – Example of DCW bridging UtiliNet mesh and Zigbee home network
- Landis+Gyr Press Release (2010) – Use of intelligence in RF mesh radios (via DCW) to optimize bandwidth for distribution automation; highlights industry use
- Landis+Gyr Training Catalog – Courses covering DCW firmware upgrades and troubleshooting
- Wikipedia (Landis+Gyr) – Acquisition of Cellnet in 2006, integrating UtiliNet/DCW technology
- Landis+Gyr Product Update Notice – Example of DCW versioning (v10.x) for new collector features, indicating ongoing evolution
