Riscure EM-FI Transient Probe
Jump to navigation
Jump to search

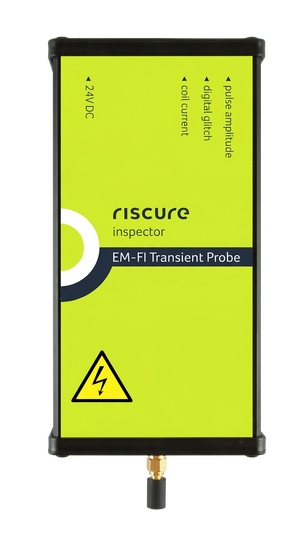

The Riscure (now KeySight) EM-FI Transient Probe is used to generate electromagnetic pulses for high voltage fault injection work. There is no logic inside this device, it accepts analog and digital input signals to set the coil current, pulse amplitude and glitch duration. It comes with a 24V external power supply.
PCB Pictures
Note: Add high resolution pictures
Bill of Materials
Note: Create table of all component designators, identifiers and measured values for unlabeled components.
Specifications
Per the datasheet, performance is outlined below.
| Type | Magnetic transient | |
|---|---|---|
| Maximum voltage over coil | 450 V (±10%) | |
| Maximum internal current | 64 A | |
| EM pulse power control | 5–100% | |
| Pulse width at digital glitch input for full power | 50 ns | |
| Max switching frequency with constant power | 1 MHz | |
| Operating temperature | 0–70 °C | |
| 1.5 mm tip | 4 mm tip | |
| Propagation delay 1 | 50 ns (±10%) | 51 ns (±10%) |
| Propagation delay 2 | 40 ns (±10%) | 42 ns (±10%) |
| Max current through coil of probe tip | 56 A (±10%) | 48 A (±10%) |
| Max voltage at current monitor | −1.4 V (±10%) | −1.2 V (±10%) |
| Pulse width of the waveform at Current Monitor | 17 ns (±10%) | 20 ns (±10%) |
