File:Roti rotimatic top no cover.jpg
Original file (3,008 × 4,000 pixels, file size: 7.15 MB, MIME type: image/jpeg)
Summary

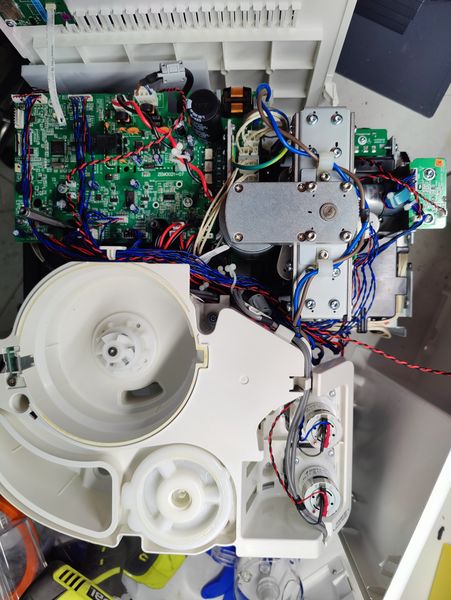

View of entire machine from the top with cover, front and back panels removed. Note side panel with wireless module flat flex at top left. 2 twisted pairs of red/black wires connecting in lower middle left of main board. Upper pair goes to side panel. Lower pair goes to rear fan (right side of picture). Front panel screen flex connector towards top of left edge of board, next to buttons flat flex just below it. Two mains pairs of AC wires brown/blue independently routed one directly to right side of board and other routed under board to top of image after passing thru additional "HVDC Filter". Note for re-assembly, large plastic section has two long screws marked with 2 orange ticks.
