File:Roti rotimatic kicker PCB optical encoder belt gears .jpg

From RECESSIM, A Reverse Engineering Community
Revision as of 07:17, 7 September 2024 by -.-6eau (talk | contribs) ("Kicker" PCB that controls the horizontal roti pusher/ejector from back to front inside machine. Optical IR encoder wheel/disc connected to motor, belt and gear assembly. Upper PCB has upper limit switch for vertical pressing motor.)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to navigation Jump to search

Original file ‎(3,072 × 4,096 pixels, file size: 6.55 MB, MIME type: image/jpeg)

Summary

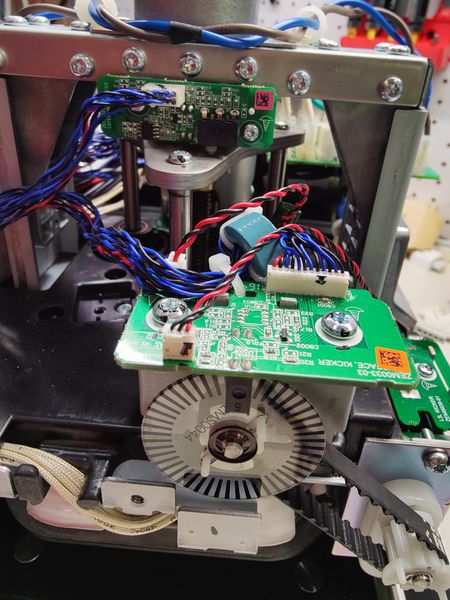

"Kicker" PCB that controls the horizontal roti pusher/ejector from back to front inside machine. Optical IR encoder wheel/disc connected to motor, belt and gear assembly. Upper PCB has upper limit switch for vertical pressing motor.
